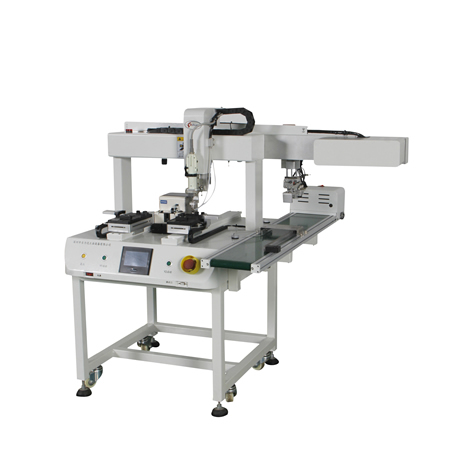

- ATS-520II High Speed Automatic Screw Fastening Machine
- Model：
- Update：2019-07-02
- Hits：
- Description
The robotic arm can load /unload products automatically, thus achieveing unmanned operation, saving manpower. Its table type small and integrated construction make it easy to set and move.
Compact construction
Single Z, twin working platforms
High efficiency,reliable Cost-effective
Versatile
Able to store various products coordinates
Automatic Loading and Unloading Easy to Learn and Operate
ATS-520II High-speed Automatic Screw-fastening Machine Specification
Structural Parameters NO of Operators None Machine Type Table type(frame optional) External Dimension L*W*H——970*1100*1180（mm） Weight 125KG Operating Area Protected Feeding type Vaccum suction of screw driver 1PCS NO of Feeders 1PCS NO of platforms 2PCS Clamping device Customized Performance Parameters Air Supply 0.4-0.8MPa oil-free and dry Power Supply 220V 50HZ Power 320W Screw Rang ＜M3 Efficiency 1.0-1.2s/pc （depends on screw） Defective rate ＜0.1%（depends on screw） Speed X、 Y、 Z—800、800、800mm/s Precision +/-0.02mm Applicable products size L*W*H--120*200*20(mm) Alarm items Slippery,missed and half-locked（optional） Screw dirver Torque Adjustable Operating interface Touch screen Coordinates storage 60 sets Maximum NO of Screw for one product 24 PCS Control Unit 4+1 axis motion controller Driving force Stepper motor/servo motor
Transmission type Precise synchronous belt/bearing rod Operating mode Robotic,load in front, unload in front/back(Robotic Arm) Switching time for different products within 20minutes Data Transfer USB port (optional） Accessories Coordinate setting handle
