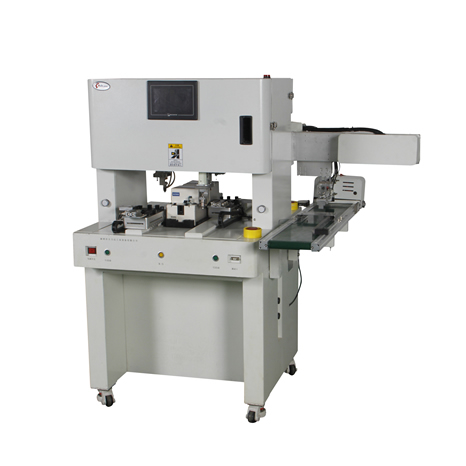

- ATS-620II High-Speed Automatic Screw Fastening Machine
- Model：
- Update：2019-07-02
- Hits：
- Description
Two screw drivers, twin platforms,The robot arm can load /unload products automatically, thus achieveing unmanned operation. Suitable for one product with two different sizes of screws.its floor type degsign makes it easy to move and set, learn and operate.
One product with two different sizes of screws
Two screw drivers, twin platforms
High efficiency，high stability，high cost performance
Versatile
Able to store multiple cell phone coordinates
Automatic Loading and Unloading, unmanned operationEasy to operate
ATS-620II High-speed Automatic Screw-fastening Machine Specification
Structural Parameters NO of Operators None Machine Type TableType External Dimension L*W*H—1265*1100*1330（mm） Weight 250KG Operating Area Protected Feeding type Vaccum suction of screw driver 2PCS NO of Feeders 2PCS NO of platforms 2PCS Clamping device Customized Performance Parameters Air Supply 0.4-0.8MPa oil-free and dry Power Supply 220V 50HZ Power 750W Screw Rang ＜M3 Efficiency 1.0-1.2s/pc （depends on screw） Defective rate ＜0.1%（depends on screw） Speed X、 Y、 Z—800、800、800mm/s Precision +/-0.02mm Applicable products size L*W*H--120*200*20(mm) Alarm items Slippery,missed and half-locked（optional） Screw dirver Torque Adjustable Operating interface Touch screen Coordinates storage 60 sets Maximum NO of Screw for one product 24 PCS Control Unit 4+4 axis motion controller Driving force Stepper motor/servo motor
Transmission type Precise synchronous belt/bearing rod Operating mode unmanned operation,load in front, unload in front/back（Robotic Arm） Switching time for different products within 20minutes Data Transfer USB port (optional） Accessories Coordinate setting handle
