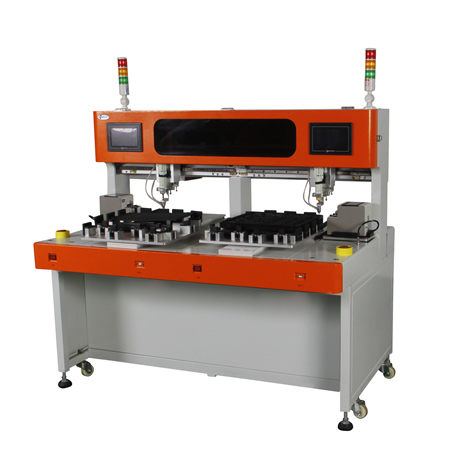

- ATS-800IIHigh-speed Automatic Screw-fastening Machine( for LED）
- Model：
- Update：2019-07-02
- Hits：
- Description
Floor type machine applicable to screws below M3, no special requirement for the length and the type of the screw thread.Time-effective with its two screw drivers and feeders.It can operate in single mode or unmaned mode depending on needs.
High efficiency：1.2S-1.5S/PCs
Replace manual screw fastening
Cost-effective
Versatile
Able to store multiple cell phone coordinates
Stable and reliableEasy to operate
ATS-800II High-speed Automatic Screw-fastening Machine Specification
Structural Parameters NO of Operators One or none Machine Type TableType External Dimension L*W*H——1485*975*1350（mm） Weight 270KG Operating Area Protected Feeding type Vaccum suction of screw driver 2PCS NO of Feeders 2PCS NO of platforms 2PCS Clamping device Customized Performance Parameters Air Supply 0.4-0.8MPa oil-free and dry Power Supply 220V 50HZ Power 600W Screw Rang ＜M3 Efficiency 1.2-1.5s/PCs（depends on screw） Defective rate ＜0.1%（depends on screw） Speed X、 Y、 Z—800、800、800mm/s Precision +/-0.02mm Applicable products size L*W*H--120*200*20(mm) Alarm items Slippery,missed and half-locked（optional） Screw dirver Torque Adjustable Operating interface Touch screen Coordinates storage 60 sets Maximum NO of Screw for one product 290PCS Control Unit 4+4 axis motion controller Driving force Stepper motor/servo motor
Transmission type Precise synchronous belt/bearing rod Operating mode load in front, unload in front/back Switching time for different products within 30minutes （screw NO of product 100） Data Transfer USB port (optional） Accessories Coordinate setting handle
