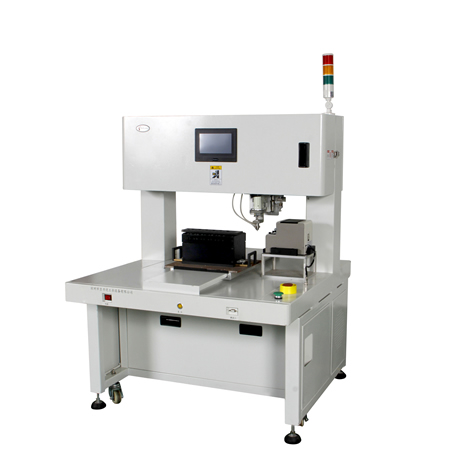

- ATS-700I High-speed Automatic Screw-fastening Machine
- Model：
- Update：2019-07-02
- Hits：
- Description
Floor type machine applicable to screws below M6,no special requirement for the length and the type of the screw thread.Time-effective with its two screw drivers and feeders.It can operate in single mode or unmaned mode depending on needs.
For big size products
For different fastening positions products
High efficiency：1.5S-2.0S/PCs
Replace manual screw fastening
One feeder down the other one can still work
Versatile
Able to store various products coordinates
Table and reliableEasy to operate
ATS-700I High-speed Automatic Screw-fastening Machine Specification
Structural Parameters NO of Operators One or none Machine Type TableType External Dimension L*W*H—1045*1000*1330（mm） Weight 250KG Operating Area Protected Feeding type Vaccum suction of screw driver 1PCS NO of Feeders 2PCS NO of platforms 1PCS Clamping device Customized Performance Parameters Air Supply 0.4-0.8MPa oil-free and dry Power Supply 220V 50HZ Power 500W Screw Rang ＜M6 Efficiency 1.5-2.0s/PCs Defective rate ＜0.1%（depends on screw） Speed X、 Y、 Z—800、800、800mm/s Precision +/-0.02mm Applicable products size L*W*H--400*400*100(mm) Alarm items Slippery,missed and half-locked（optional） Screw dirver Torque Adjustable Operating interface Touch screen Coordinates storage 60 sets Maximum NO of Screw for one product 290PCS Control Unit 4 axis motion controller Driving force Stepper motor/servo motor
Transmission type Precise synchronous belt/bearing rod Operating mode load in front, unload in front/back Switching time for different products within 30minutes Data Transfer USB port (optional） Accessories Coordinate setting handle
