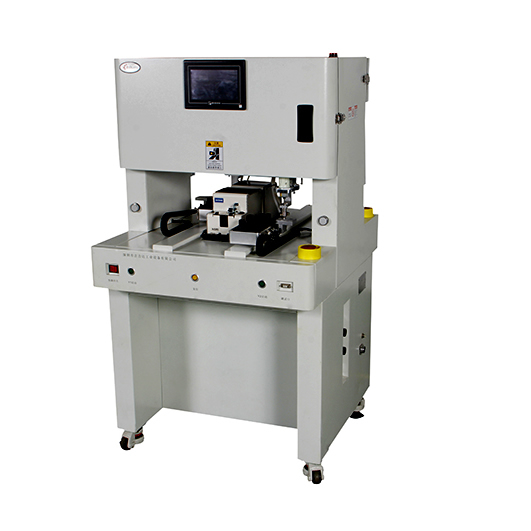

- ATS-600II High Speed Automatic Screw Fastening Machine
- Model:
- Update:2019-07-02
- Hits:
- Description
-
Two screw drivers, Suitable for one product with two different sizes of screws, or one screw for high production demand. 70% faster than taht of single-Z machine.Same fastening quality.
High efficiency:0.6S-0.8S/PCS
Replace manual screw fastening
suitable for two different sizes of screws
Versatile
Able to store various products coordinates
Stable and reliable
ATS-600II High-speed Automatic Screw-fastening Machine Specification
Structural Parameters NO of Operators One or none Machine Type Table type External Dimension L*W*H——805*735*1330(mm) Weight 220KG Operating Area Protected Feeding type Vaccum suction of screw driver 2PCS NO of Feeders 2PCS NO of platforms 2PCS Clamping device Customized Performance Parameters Air Supply 0.4-0.8MPa oil-free and dry Power Supply 220V 50HZ Power 580W Screw Rang <M3 Efficiency 1.0-1.2s/pc (depends on screw) Defective rate <0.1%(depends on screw) Speed X、 Y、 Z—800、800、800mm/s Precision +/-0.02mm Applicable products size L*W*H--120*200*20(mm) Alarm items Slippery,missed and half-locked(optional) Screw dirver Torque Adjustable Operating interface Touch screen Coordinates storage 60 sets Maximum NO of Screw for one product 24 PCS Control Unit 4+4 axis motion controller Driving force Stepper motor/servo motor
Transmission type Precise synchronous belt/bearing rod Operating mode load in front, unload in front/back Switching time for different products within 15 minutes Data Transfer USB port (optional) Accessories Coordinate setting handle
