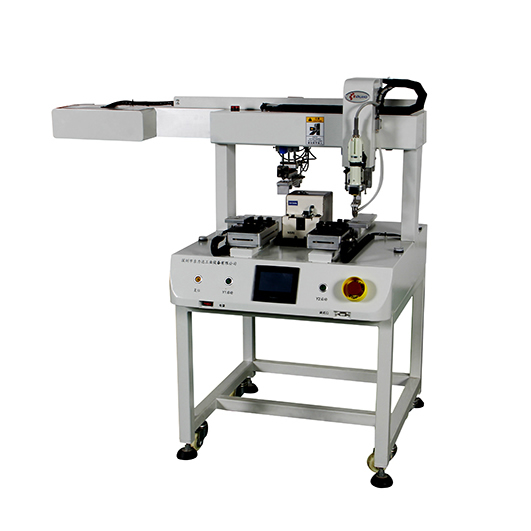

- ATS-510High-speed Automatic Screw-fastening Machine
- Model：
- Update：2019-07-02
- Hits：
- Description
Small table machine for compact production line.Applicable for various kinds screw below M3.No special requirement for the length and the type of the screw thread，It can operate in single mode or unmaned mode depending on needs. Unloading robotic arm for high productivity demand.
High efficiency：1.0S-1.2S/PCS
Replace manual screw fastening
Cost-effective
Versatile
Able to store various products coordinates
Stable and reliableEasy to learn and operate
ATS-510II High-speed Automatic Screw-fastening Machine Specification
Structural Parameters NO of Operators One or none Machine Type Table type(frame optional) External Dimension L*W*H——700*1005*670（mm） Weight 115KG Operating Area Protected Feeding type Vaccum suction of screw driver 1PCS NO of Feeders 1PCS NO of platforms 2PCS Clamping device Customized Performance Parameters Air Supply 0.4-0.8MPa oil-free and dry Power Supply 220V 50HZ Power 320W Screw Rang ＜M3 Efficiency 1.0-1.2s/pc （depends on screw） Defective rate ＜0.1%（depends on screw） Speed X、 Y、 Z—800、800、800mm/s Precision +/-0.02mm Applicable products size L*W*H--120*200*20(mm) Alarm items Slippery,missed and half-locked（optional） Screw dirver Torque Adjustable Operating interface Touch screen Coordinates storage 60 sets Maximum NO of Screw for one product 24 PCS Control Unit 4+1 axis motion controller Driving force Stepper motor/servo motor
Transmission type Precise synchronous belt/bearing rod Operating mode Robotic,load in front, unload in front/back(Robotic Arm) Switching time for different products within 15 minutes Data Transfer USB port (optional） Accessories Coordinate setting handle
