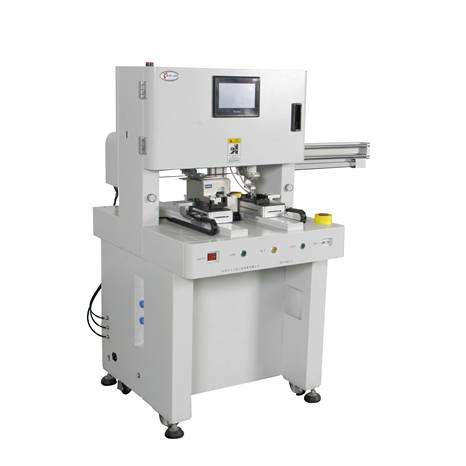

- AST-410IIHigh-speed Automatic Screw-fastening Machine
- Model：
- Update：2019-07-02
- Hits：
- Description
Garland's best seller, apart from good fastening performance, high speed,its integrated, rigid construction diminish the vibration when operating, separation between the mechanical and electrical parts make it easy to maintain.Robotic arm (optional) is for high quality and high productivity demand.
High efficiency：1.0S-1.2S/PCS
Replace manual screw fastening
Automatic Unloading
Versatile
Able to store various products coor
Rigid and elegant construction, endurableEasy to learn and operate
ATS-410II High-speed Automatic Screw-fastening Machine Specification
Structural Parameters NO of Operators One or none Machine Type Floor Type External Dimension L*W*H——785*1280*1325（mm） Weight 200KG Operating Area Protected Feeding type Vaccum suction of screw driver 1PCS NO of Feeders 1PCS NO of platforms 2PCS Clamping device Customized Performance Parameters Air Supply 0.4-0.8MPa oil-free and dry Power Supply 220V 50HZ Power 320W Screw Rang ＜M3 Efficiency 1.0-1.2s/pc （depends on screw） Defective rate ＜0.1%（depends on screw） Speed X、 Y、 Z—800、800、800mm/s Precision +/-0.02mm Applicable products size L*W*H--120*200*20(mm) Alarm items Slippery,missed and half-locked（optional） Screw dirver Torque Adjustable Operating interface Touch screen Coordinates storage 60 sets Maximum NO of Screw for one product 24 PCS Control Unit 4+1 axis motion controller Driving force Stepper motor/servo motor
Transmission type Precise synchronous belt/bearing rod Operating mode load in front, unload in front/back（Robotic Arm） Switching time for different products within 15minutes（screw NO of product 100） Data Transfer USB port (optional） Accessories Coordinate setting handle
