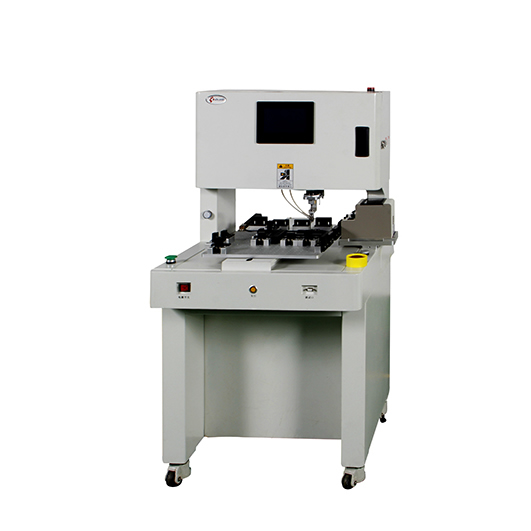

- ATS-400I High-speed Automatic Screw-fastening Machine
- Model：
- Update：2019-07-02
- Hits：
- Description
Floor type machine applicable to screws below M3,its small size can place on production line, no special requirement for the length and the type of the screw thread.It can operate in single mode or unmanned mode depending on needs.
High efficiency：1.0S-1.2S/PCS
Replace manual screw fastening
Cost-effective
Versatile
Able to store various products coordinates
Stable and reliableEasy to operate
ATS-400I High-speed Automatic Screw-fastening Machine SpecificationStructural Parameters NO of Operators One or none Machine Type Floor Type External Dimension L*W*H——785*670*1325（mm） Weight 170KG Operating Area Protected Feeding type Vaccum suction of screw driver 1PCS NO of Feeders 1PCS NO of platforms 1PCS Clamping device Customized Performance Parameters Air Supply 0.4-0.8MPa oil-free and dry Power Supply 220V 50HZ Power 300W Screw Rang ＜M3 Efficiency 1.0-1.2s/pc （depends on screw） Defective rate ＜0.1%（depends on screw） Speed X、 Y、 Z—800、800、800mm/s Precision +/-0.02mm Applicable products size L*W*H--360*360*40(mm) Alarm items Slippery,missed and half-locked（optional） Screw dirver Torque Adjustable Operating interface Touch screen Coordinates storage 60 sets Maximum NO of Screw for one product 290 PCS Control Unit 4 axis motion controller Driving force Stepper motor/servo motor
Transmission type Precise synchronous belt/bearing rod Operating mode load in front, unload in front/back Switching time for different products within 30 minutes Data Transfer USB port (optional） Accessories Coordinate setting handle
